Txhaj Tshuab Moulding yog dab tsi?
Kev sib piv nrog kev txhaj tshuaj molding
Txhaj tshuab moulding (IBM) thiab txhaj tshuaj molding yog ob txoj kev sib txawv uas nquag siv hauv kev kho mob, chav kuaj, thiab ntim kev lag luam los tsim cov khoom siab -cov yas yas. Txawm hais tias ob qho tib si pib nrog "txhaj tshuaj," lawv ua haujlwm sib txawv thiab tsim cov khoom sib txawv.
Core Differences ntawm ib Glance
| Feature | Txhaj Tshuab Moulding (IBM) | Txhaj Molding |
|---|---|---|
| Yam khoom | Hollow, nyias-cov thawv ntim (vials, fwj, droppers, me me ntim kho mob) | Khoom lossis tuab-cov khoom siv phab ntsa (caps, phaj, fittings, syringe chim, petri tais diav) |
| Ib feem qauv | Hollow, ib - thooj lub cev nrog cov phab ntsa zoo sib xws | Yuav luag ib txwm muaj zog (lossis qhib- xaus yog tias ob- ntu pwm) |
| Caj dab tiav precision | Siab heev (hmoov-moulded caj dab) | Siab |
| Phab ntsa thickness tswj | Zoo heev thiab sib xws | Txiav txim los ntawmpwm kab noj hniav/core gap |
| Haum ntim | Feem ntau 1 ml - 1,000 ml | Tsis muaj kev txwv ntim |
| Txheej txheem cov kauj ruam | 3 lossis 4 chaw nres tsheb (txhaj tshuaj → tshuab → ejection → xaiv txias) | Ib qhov chaw nres tsheb (txhaj → txias → eject) |

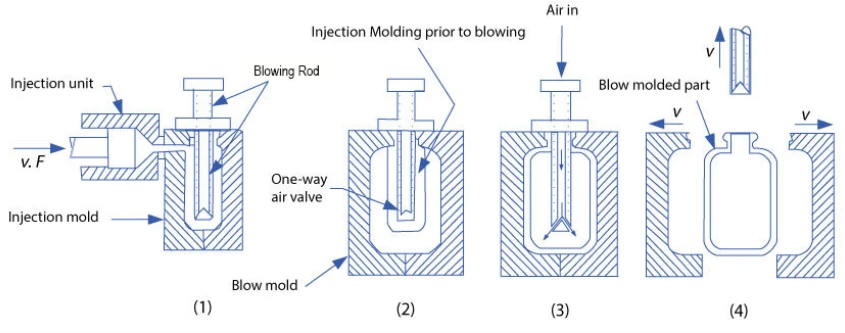

Yuav Ua Li Cas Txhaj Tshuab Moulding Tiag Ua Haujlwm
(Peb- txheej txheem chaw nres tsheb - feem ntau tshwm sim hauv cov khoom kho mob & chaw kuaj mob)
- Txhaj ntawm PreformYas resin (PET, PP, HDPE, PC, thiab lwm yam) yog yaj thiab txhaj rau hauv cov pwm txhaj tshuaj kom sov ua kom tuab -walled test- raj- zoo li "preform" (tseem hu ua parison). Lub caj dab cheeb tsam (xov, flanges) yog tag nrho tsim thiab txias nyob rau theem no nrog high precision.
- Hloov mus rau Blow StationQhov kub preform, tseem tuav ntawm cov tub ntxhais pins, yog cia li hloov mus rau qhov chaw nres tsheb tshuab thaum sab hauv tseem molten.
- Tshuab & Stretching (yeem)Siab - siab sterile huab cua (thiab tej zaum ib tug stretch pas nrig nyob rau hauv stretch- tshuab tshuab) expands lub preform tiv thaiv ib tug txiastshuab pwm, tsim qhov kawg nyias -walled hollow thawv. Phab ntsa thickness faib yog deb tshaj rau extrusion tshuab molding.
- Tshem tawmLub raj mis / vial tiav lawm ejected. Tag nrho lub voj voog feem ntau siv sijhawm 10-20 vib nas this.
Qhov zoo ntawm IBM rau kev kho mob & chav kuaj ntim:
- Tsis muaj cov kab los yog pinch -tawm nti (tsis zoo li extrusion tshuab molding)
- Lub caj dab zoo heev qhov ntev → zoo meej sealing nrog lub kaus mom thiab septa
- Superior clarity thiab nto tiav
- Yuav ua kom tsis muaj menyuam tawm ntawm cov pwm (aseptic IBM)
- Tsawg heev cov kab mob sib kis
Txhaj Molding (txheej txheem txheej txheem)
Yas pellets yog melted nyob rau hauv ib tug ntsia hlau chim thiab txhaj nyob rau hauv lub siab siab mus rau hauv lub kaw, txias pwm. Tom qab packing thiab txias, cov khoom yog ejected. Cov txheej txheem no zoo tagnrho rau:
- Lub hau, lub hau, thiab kaw
- Cov khoom siv (syringe plungers, cuvettes, tob-cov phaj zoo)
- Txhua qhov yuav tsum tau muaj cov phab ntsa tuab lossis cov qauv tsim muaj zog
Thaum twg thiaj xaiv qhov txheej txheem twg?
| Kev xav tau | Txheej txheem zoo tshaj plaws | Yog vim li cas |
|---|---|---|
| Lub raj mis me- nruab nrab hollow nrog cov xov meej | Txhaj Tshuab Moulding | Lub caj dab yog txhaj tshuaj- molded → qhov tseeb tshaj plaws |
| Large containers (>1–2 L) | Feem ntau Extrusion Tshuab | IBM ua tsis muaj nyiaj txiag |
| Khoom seem, kaus mom, fittings | Txhaj Molding | Cov cuab yeej ceev dua, pheej yig dua rau cov duab zoo |
| Xav tau aseptic ntau lawm ncaj qha los ntawm pwm | Txhaj Tshuab Moulding (aseptic IBM) | Ua tau hauv chav huv IBM tshuab |
| Phab ntsa nyias nyias nrog siab clarity (PET) | Stretch Txhaj Tshuab (ISBM) | Biaxial orientation txhim kho lub zog & pom tseeb |
Cov khoom siv dav siv
| Txheej txheem | Cov khoom siv nquag siv |
|---|---|
| Txhaj Tshuab Moulding | HDPE, PP, PET, PETG, PC, COC, COP, PS, TPE |
| Txhaj Molding | Zoo tag nrho cov thermoplastics xws li ABS, POM, PEEK, PSU, thiab lwm yam. |
Cov ntsiab lus
Txhaj tshuab moulding yog txheej txheem hybrid uas sib xyaw ua ke ntawm kev txhaj tshuaj molding rau lub caj dab tiav nrog kev ua haujlwm ntawm tshuab moulding rau lub cev. Nws yog txoj kev nyiam tshaj plaws thoob ntiaj teb rau siab - zoo, me me - mus rau - cov ntim nruab nrab hollow siv rau hauv kev kuaj mob, tshuaj, thiab daim ntawv thov kuaj. Cov txheej txheem txhaj tshuaj molding tseem nyob rau hauv- ua cov khoom yas thiab kaw.
Los ntawm kev nkag siab txog qhov sib txawv no, OEMs thiab cov neeg tsim khoom tuaj yeem xaiv txoj kev tsim khoom zoo rau lawv cov kev ua tau zoo, tus nqi, thiab kev tswj hwm.
